TB.One > Import & Export > Master Data Import via TB.Cat/XML > TB.Cat - XML Structure > TBCATALOG > PRODUCTDATA > PRODUCT

PRODUCT

ATTENTION:
The content of the "PRODUCT" node differs, depending on whether you use TB.Cat 1.4 or TB.Cat 1.2/1.3. Select your XML standard below.

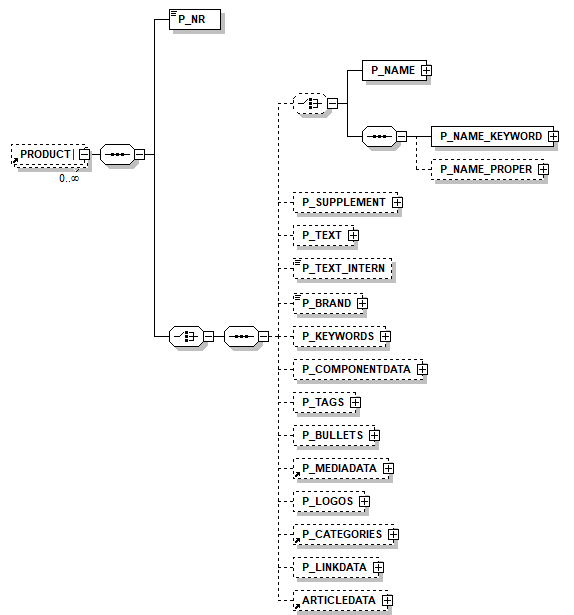

product14

NODE	REQUIRED	DATA TYPE	DESCRIPTION
P_NR	Y	CHAR(50)	Unique product number If the product has no variants, the article number (A_NR) and product number may be identical
P_NAME	N	CHAR(255)	Product designation: the designation can either be maintained in one field (P_NAME) or split into the two fields common noun and proper name (P_NAME_KEYWORD and P_NAME PROPER). Tradebyte recommends the latter. To display the fields in TB.One, activate the according option at "Admin > System Settings > User interface".
P_NAME_KEYWORD	Y	CHAR(255)
P_NAME_PROPER	N	CHAR(255)
P_SUPPLEMENT	N	CHAR(255)	This field contains a second (promotional) headline. It is not used by all channels.
P_TEXT	Y	TEXT	Product description: the description has to be stored as a continuous text. The handling of line breaks in the HTML format (<br/> or \n) can be configured at "Admin > Import > Settings".
P_TEXT_INTERN	N	TEXT	Internal remarks
P_BRAND	N	XML	Brand
P_KEYWORD	N	XML	Keywords/search terms
P_COMPONENTDATA	N	XML	Product components
P_TAGS	N	XML	Product attributes
P_BULLETS	N	XML	Explicit key features as bullet points Whether bullet points are used depends on the distribution channel
P_MEDIADATA	N	XML	Product media (images, documents, ...)
P_LOGOS	N	XML	Service logos (care instructions, ...)
P_CATEGORIES	N	XML	Category assignments (internal, channel, ...) and clusters
P_LINKDATA	N	XML	Links (cross-selling, accessories, ...)
ARTICLEDATA	N	XML	Article data

For further information, see also:

▪Examples: XML for TB.Cat 1.4

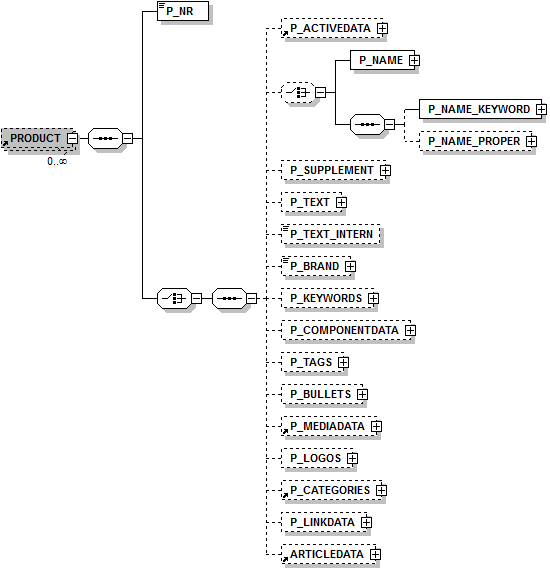

product

NODE	REQUIRED	DATA TYPE	DESCRIPTION
P_NR	Y	CHAR(50)	Unique product number If the product has no variants, the article number (A_NR) and product number may be identical
P_ACTIVEDATA	N	XML	Indicates the activation of the entire product for all channels
P_NAME	N	CHAR(255)	Product designation: the designation can either be maintained in one field (P_NAME) or split into the two fields common noun and proper name (P_NAME_KEYWORD and P_NAME PROPER). Tradebyte recommends the latter. To display the fields in TB.One, activate the according option at "Admin > System Settings > User interface".
P_NAME_KEYWORD	Y	CHAR(255)
P_NAME_PROPER	N	CHAR(255)
P_SUPPLEMENT	N	CHAR(255)	This field contains a second (promotional) headline. It is not used by all channels.
P_TEXT	Y	TEXT	Product description: the description has to be stored as a continuous text. The handling of line breaks in the HTML format (<br/> or \n) can be configured at "Admin > Import > Settings".
P_TEXT_INTERN	N	TEXT	Internal remarks
P_BRAND	N	XML	Brand
P_KEYWORD	N	XML	Keywords/search terms
P_COMPONENTDATA	N	XML	Product components
P_TAGS	N	XML	Product attributes
P_BULLETS	N	XML	Explicit key features as bullet points Whether bullet points are used depends on the distribution channel
P_MEDIADATA	N	XML	Product media (images, documents, ...)
P_LOGOS	N	XML	Service logos (care instructions, ...)
P_CATEGORIES	N	XML	Category assignments (internal, channel, ...) and clusters
P_LINKDATA	N	XML	Links (cross-selling, accessories, ...)
ARTICLEDATA	N	XML	Article data

For further information, see also:

▪Examples: XML for TB.Cat 1.2/1.3
